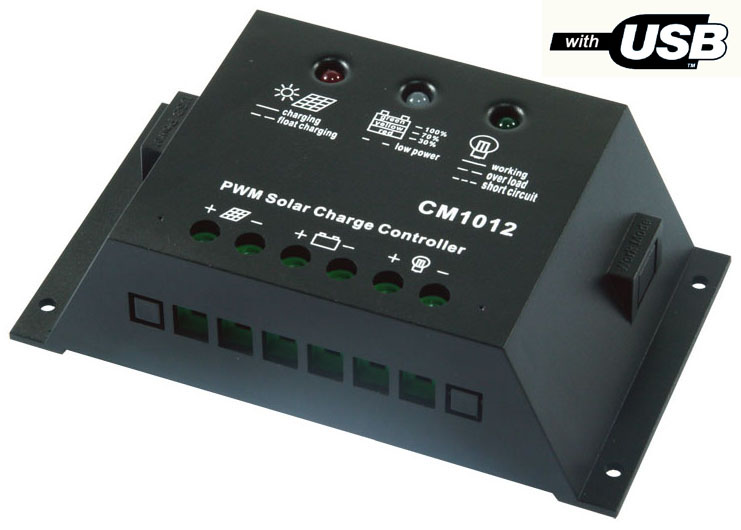

CM1012 solar charge controller

 Features

1. Intuitionistic LED indicators show the current system battery capacity, charging and discharging state of the battery.
2. Having the protection functions as overcharging, over discharging, overload, short-circuit and reversed connection.
3. Tandem type PWM charging makes the charging efficiency increase by 3% to 6%, compared with non-PWM charging.
4. The parameters of charging and discharging have been set during the production (special parameters need to be told in advance), so no need to adjust the parameters.
5. It can set the working mode of the load.
6. USB charging function (optional).

Model
CM1012
Low voltage protection
10.7V
Rated current
10A
Low voltage reconnecting
12.6V
System voltage
12V
Temperature compensation
-4mv/¡æ/2V£¨hoisting, floating
charging compensation£©
no load loss
¡Ü12mA£¨not including USB£©
Charging mode
PWM
charging (Discharging)
circuit voltage drop
<0.2V(<0.15V)
Overloading and
short circuit protection
1.25 times than rated current, protect the load within 60 seconds. 2.5 times or over, starting the short circuit protection
Hoisting voltage
14.4V (lasting time£º10min)
Float charging voltage
13.7V
installing holes
¦µ3.5¡ª55mm*122mm
Environmental temperature
-20¡æ¨D50¡æ
installing cables diameter
¡Ü16mm2
