●Simple button operation
●Automatic Identification of System Voltage level
●Intelligent PWM charging mode
●Automatic Temperature Compensation (custom)
●Adjustable charge-discharge control parameters
●Settable Operating mode of Load
●Battery reverse-discharge protection
●Battery Low Voltage Disconnection (LVD)
●Battery reverse connection protection
●Overcurrent protection.
|
Type
Parameters |

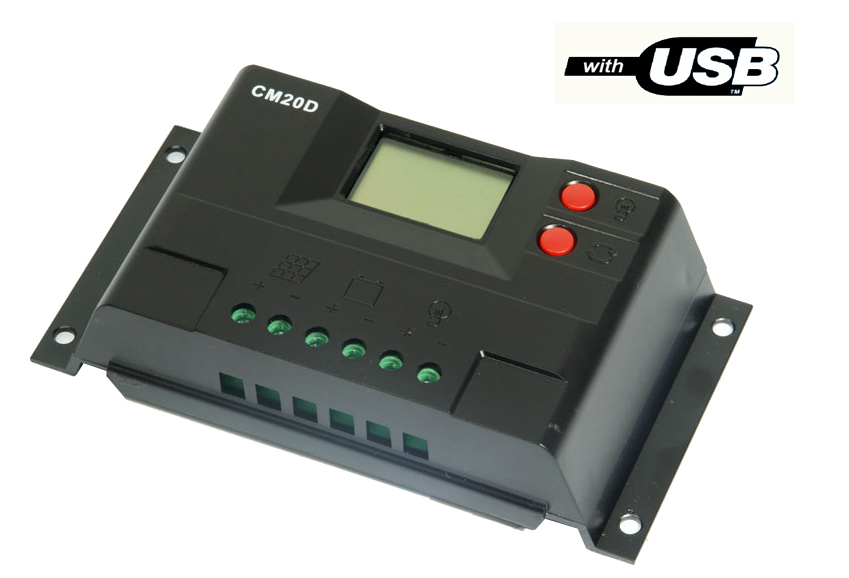

CM20D |
Type
Parameters |
CM20D |
|
Rated current |
10A24V |
20A24V |
30A24V |
|
＜0.2V|＜0.1V |
|
Rated voltage |
12V/24V Automatic Identification |
Charging mode |
PWM mode |
|
Voltage of solar panel |
≤50V |
|
-4mV/Cell/℃（to be customized） |
|
Floating charge |
13.8V/27.6V |
Specification of the cables |
≤5# AWG (6mm2) |
|
Under-voltage protection |
10.7V/21.4V |
Working temperature |
-20℃~60℃ |
|
Under-voltage recovery |
12.6V/25.2V |
Storage temperature |
-30℃~70℃ |
|
Boost voltage |
b01 sealed 14.4V/28.8V |
(Duration：2hours) |
Temperature requested |
≤90％,No condensation |
|
b02 Gel14.2V/28.4V |
Dimension |
88 mm×160 mm×37 mm |
|
b03Flooded 14.6V/29.2V |
diameter of mounting hole |
64 mm×150 mm --Φ5 |
