●Image of LCD graphic symbol
●Simple button operation
●Automatic Identification of System Voltage level
●Intelligent PWM charging mode
●Over current protection.
●Adjustable charge-discharge control parameters
●Settable Operating mode of Load
●Battery reverse-discharge protection
●Battery Low Voltage Disconnection (LVD)
●Battery reverse connection protection
|
mode
parameter |

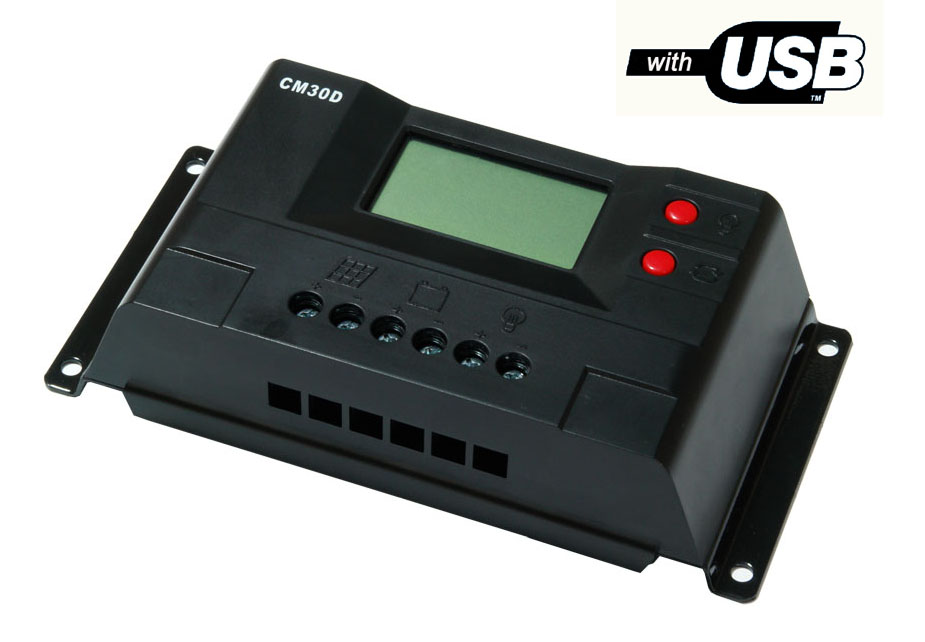

CM30D |
CM30DU |
mode
parameter |
CM30D |
CM30DU |
|
Rated Current |
30A |
USB output max |
|
1A/5V |
|
SystemVoltage |
12V/24V auto |
Charge/Discharge
Voltage Drop |
＜0.3V/＜0.2V |
|
solar panel |
<50V |
|
Float Voltage |
13.8V/27.6V |
Self-consumption |
≤20mA |
|
LVD |
10.7V/21.4V |
Installation cable area |
≤7# AWG (≤16mm2) |
|
LVR |
12.6V/25.2V |
Working Temperature |
-20℃~50℃ |
|
Boost
Voltage |
b01 Sealed 14.4V/28.8V |
Dura-tion 2hours |
Storage temperature |
-30℃~70℃ |
|
b02 GEL 14.2V/28.4V |
Humidity |
10％-90％, NC |
|
b03Flooded14.6V/29.2V |
Size |
95mm×181 mm×42 mm |
|
HVD |
15.5V/31.0V |
Mounting hole spacing |
75 mm×171 mm -Φ5 |
|
HRD |
15.0/30.0V |
Weight |
380g |
